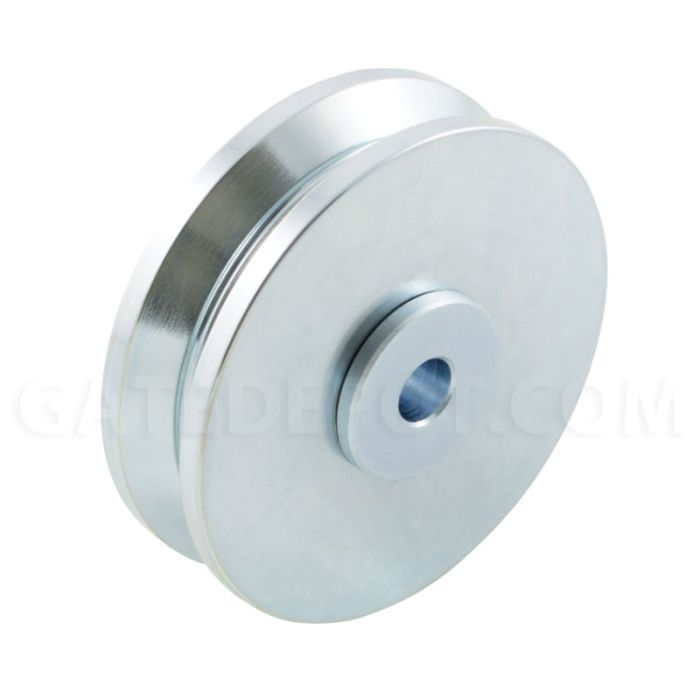

D&D Shut It® Hardcore™ CI2415 V-Groove Wheel - 4" x 1-1/2"
• 4" x 1-1/2"
• Two maintenance-free sealed bearings (no greasing)
• Only 1⅛" (29mm) wide to reduce friction and debris issues
• Super-hard cold rolled steel (30RC rating)
• Load rating per gate: 3,000 lb (1,360kg)
• Max gate weight: 1,500 lb (680kg)
• Carriage plate available separately
MPN:
CI2415
$51.70
SKU
DND-ci2415
Product Details
The 4" (102mm) HardCORE V-Groove Wheel for 11?2" (38mm) Gate Frames is designed to be used on a gate with a 11?2" (38mm) bottom rail. This wheel does not include carriage plates, so the user will have provide their own wheel box or plate system. All HardCORE wheels use SHUT IT's unique bushing design, which fully utilises the roller bearings.
Features
- Brand: Shut It™ HardCore
- Gate Application: Driveway Gate - Double, Driveway Gate - Single, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate
- Gate Material: Aluminum, Steel/Ornamental Iron
- Approx Gate Size: 6ft W x 8ft H (1.5m x 2m)
- Gate Frame/Post Shape: Square-to-Square
- Min Post Size: 1½" (38mm), 2" (51mm)
- Fixing Method: Bolt-On
- Color/Finish: Zinc
| Manufacturer Part Number | CI2415 |
|---|---|
| Brand | D&D |
