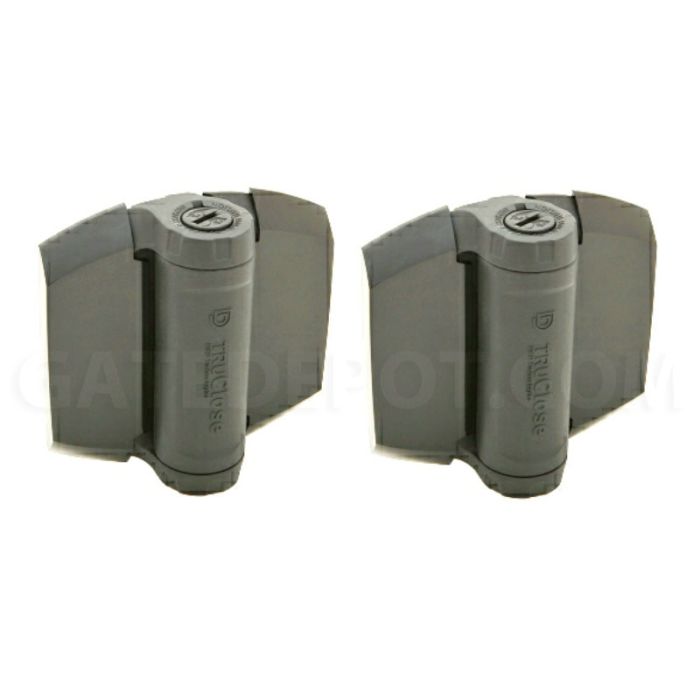

D&D TruClose® TCHD1A Heavy Duty Self-Closing Hinge - Metal Gates / 154 Lbs

TruClose® Safety Gate Hinges are the world's most trusted child safety gate hinges. These polymer hinges were devised to overcome all the problems associated with conventional gate hinges – rust, binding, sagging and staining. The TruClose HEAVY DUTY range of hinges are designed for heavy or high-traffic gates weighing up to 70kg. The engineering-grade polymers and a stainless-steel closing spring deliver hinges designed to last a lifetime. Due to a high degree of safety and reliability, TruClose hinges are ideal for child safety gates around swimming pools*, childcare centers, schools, homes, playgrounds and hotels/resorts. TruClose hinges are quick and easy to install and to adjust for self-closing speed. They come standard with Black trim covers, which means there are no visible fasteners. Optional Polished or Chrome metallic trim covers are also available. The TruClose® HEAVY DUTY hinges come in a range of other options, including some with side-fixing legs (to assist speedy installation and extra fixing strength), a MultiAdjust version offering remarkable 3-way adjustment (vertical, horizontal and tension adjustment) and a version for round-posted gates and fences (such as on tennis court gates etc.). D&D has sold millions of these award-winning TruClose® Safety Gate Hinges worldwide.

* When installing TruClose® hinges to a swimming pool gate always confirm any safety requirements with your local Council or safety authorities to ensure compliance.

Features

• For pool and safety gates install a hinge safety cap (optional)
• Quick and easy to install
• Self-closes gates up 154 lb (70kg)
• Won't rust, bind, sag or stain
• Simple, adjustable closing tension (from either end of hinge)
• Super-strong polymer and stainless steel construction
• UV-stabilized and self-lubricating durability
• Decorative trim covers available (no visible fasteners)
• Optional 1 or 2 side-fixing legs for faster alignment & added strength

Specifications

• Brand: TruClose®
• Gate Application: Pool Gate, Child Safety Gate, Front Gate, Side Gate, Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Security Gate, Privacy Gate, Safety Gate
• Gate Type: Self-Closing
• Gate Material: Aluminum, Steel/Ornamental Iron
• Self-Closing Gate Weight: Up to 154lb (70kg)
• Approx Gate Size: 4ft W x 6ft H (1.2m x 1.8m)
• Gate Frame/Post Shape: Square-to-Square
• Min Post Size: 1 3/8"+ (35mm)
• Ideal Gate Gap: ¾" (19mm)
• Fixing Method: Screw-On
