D&D TruClose® TCAMA1 Mini-Multi Adjustable Self-Closing Hinge - 55 Lbs
• Self-closing gate weight: 55 lbs.

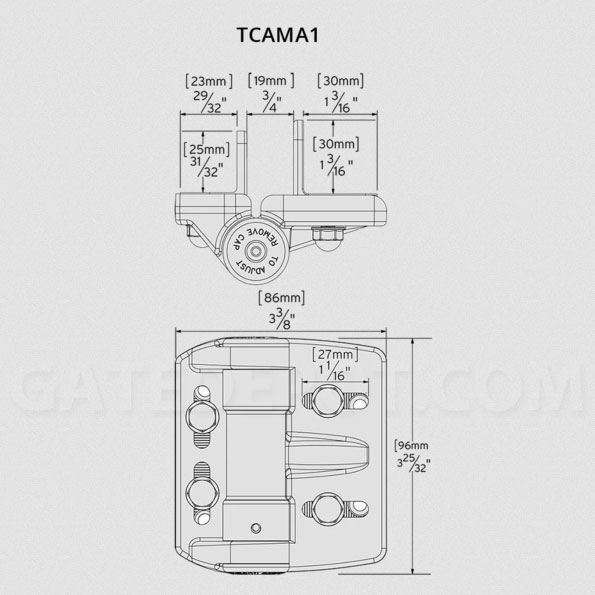

• Height: 3-3/4" H. x 3-3/8" W.
• Gap: 3/4" to 1-1/2"
• Ideal Gap: 1-1/8"
• Color: Black
• Legs: 2 Alignment legs
• Mount Style: Face-fixed
• Opening: 180°
• Application: For Metal
• Sold in Pairs
MPN:
TCAMA1
$106.80
SKU
DND-tcama1
Product Details
TruClose® Gate Hinges are the world's most trusted gate hinges. These polymer hinges were devised to overcome all the problems associated with conventional gate hinges – rust, binding, sagging and staining. The TruClose® MINI MULTI-ADJUST™ Hinges are versatile hinges designed for gates and fences with large gate gaps. They're ideal for heavy or high-traffic metal, wood or vinyl gates weighing up to 25kg. TruClose hinges are quick and easy to install and to adjust for self-closing speed. A round-posted version is available for chainlink gates and fences. D&D has sold millions of award-winning TruClose® Gate Hinges worldwide.
Features
- 3-way adjustment - vertical, horizontal & tension
- Up to ¾" (19mm) adjustment
- Two models for gate gaps up to 1½" & 2" (38 & 50mm)
- Self-closes wood and vinyl gates up 55lb (25kg)
- Won't rust, bind, sag or stain
- Made from super-strong engineered polymer
- UV stabilized, self-lubricating durability
- Internal stainless steel spring and components
- Easy alignment legs & adjustment slots
Specifications
- Brand: TruClose®
- Gate Application: Front Gate, Side Gate, Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Security Gate, Privacy Gate
- Gate Type: Self-Closing
- Gate Material: Aluminum, Steel/Ornamental Iron, Wood, Vinyl/PVC
- Self-Closing Gate Weight: Up to 55lb (25kg)
- Approx Gate Size: 4ft W x 6ft H (1.2m x 1.8m)
- Gate Frame/Post Shape: Square-to-Square
- Min Post Size: 1¼"+ (30mm)
- Ideal Gate Gap: 1" (29mm), 1½" (35mm)
- Fixing Method: Screw-On
| Manufacturer Part Number | TCAMA1 |
|---|---|
| Brand | D&D |
