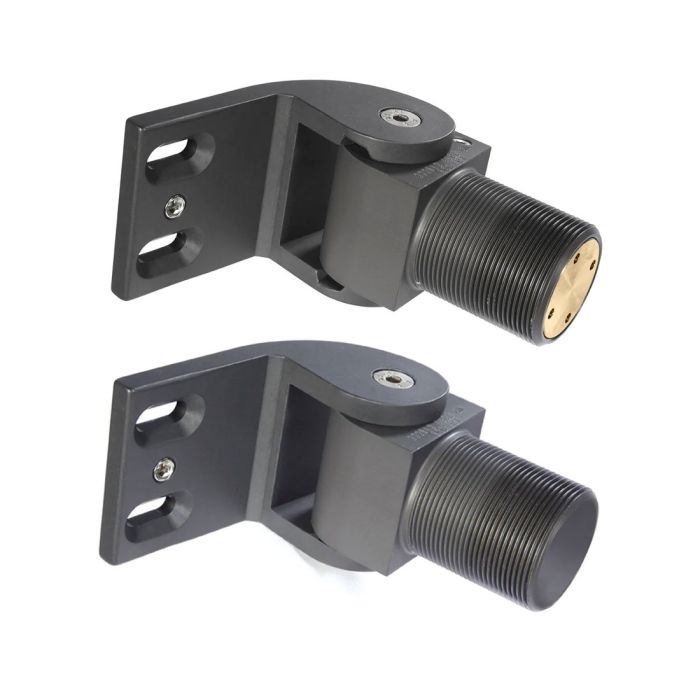

D&D SureClose® Self-Closing Hinges - Flush Mount
From $385.70
To $1,497.60
Product Details
Hydraulic SureClose® Gate Closers & Hinges are designed to replace conventional, bulky commercial gate hinges and closers. These strong and sturdy hinge-closers provide smooth, bind-free performance. Superb engineering and patented design allow clever concealment of the hydraulics in a remarkably small housing. There is no compromise of quality with these small-footprint SureClose® gate closers and hinges. The SureClose® SM hinge was designed for large industrial-style gates, such as found on commercial and heavy residential gates, plus estate gates and gates around factories, schools, access control areas and driveways that don't require self-closure.
The SM model features extra-large hinge pins and dual thrust bearings designed for high loads. Save money when SM is used as the bottom, load-bearing hinge along with a SureClose® 57 or SureClose® 108 closer.
SureClose 108 and 57 models are concealed hydraulic gate closers. The models feature Final Snap-Close Action (FSA) which increases speed at the end of closing to overcome electric or coded locks. Both 'Closing Speed' and 'Final Snap' are adjustable using the supplied adjustment tool. Designed to never leak hydraulic fluid, the SureClose 108 or 57 are extremely safe and do not offer resistance if closed quickly in an emergency. Soft, quiet closure also protects the latching/locking system. All SureClose® hinges and closers come packaged with the gate mounting bracket included. Post mounting brackets sold separately. Aluminium gate mounting brackets: Pre-drill using 5mm drill bit and use #14 countersunk through-bolts or fasteners. See post brackets for their fastener requirements.
Features
- Brand: SureClose®
- Gate Application: Front Gate, Side Gate, Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Security Gate, Privacy Gate, Safety Gate
- Gate Type: Self-Closing
- Gate Material: Aluminum, Steel/Ornamental Iron
- Self-Closing Gate Weight: Up to 260lb (120kg)
- Approx Gate Size: 4ft W x 6ft H (1.2m x 1.8m)
- Gate Frame/Post Shape: Square-to-Square
- Min Post Size: 2¼"+ (55mm)
- Ideal Gate Gap: ½" (13mm)
- Fixing Method: Screw-On, Weld-On
- Color/Finish: Black Anodised
|
|
|
|||||
|
|

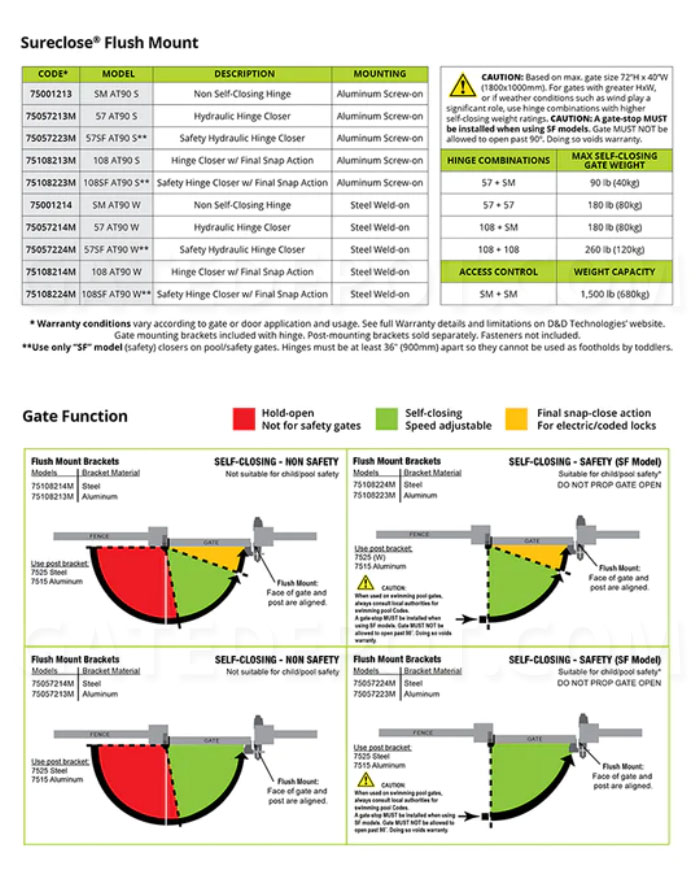

75001214 (x2) + 7525 (x2) | 180° | ||||
| 75057224M + 75001214 + 7525 (x2) |
|
90° | ||||
| 180 Lbs | 75108224M + 75001214 + 7525 (x2) |
1/2"
|
3" + | 90° | NO | |
| 260 Lbs | 75108224M (x2) + 7525 (x2) |
1/2"
|
3" + | 90° | NO | |
|
|
75108214M (x2) + 7525 (x2) | 180° |
| Brand | D&D |
|---|
