Comunello RS-100F Uphill Hinge Set
• Uphill Hinge Set
• Bolt-on
• For gate leaves up to 10ft
• Leaf weight 330lbs
• Galvanized
MPN:
RS-100F
$269.65
SKU
COM-rs-100f
Product Details

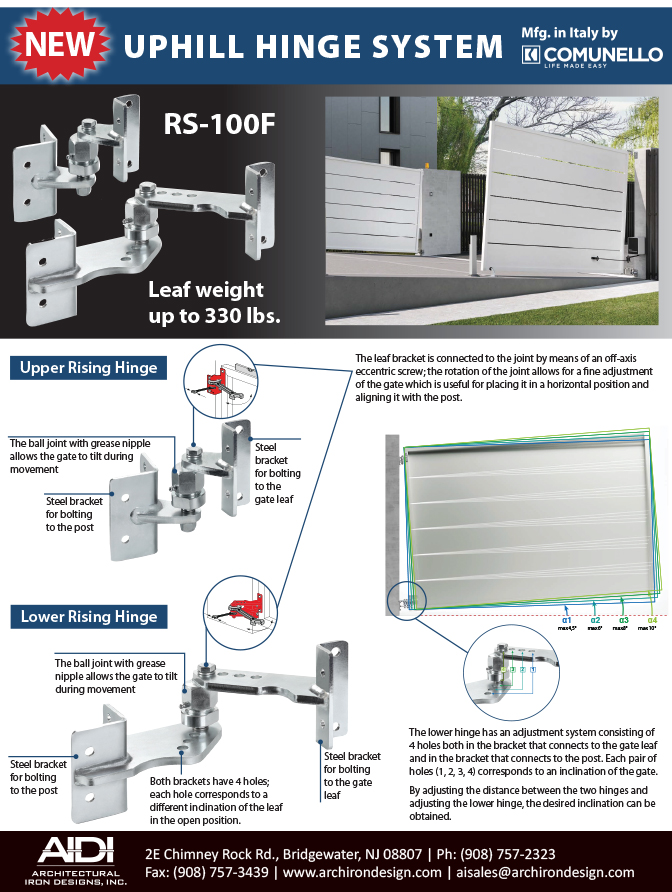

The Rising Hinge System is an innovative uphill hinge system designed and developed for gates with openings on a slope.

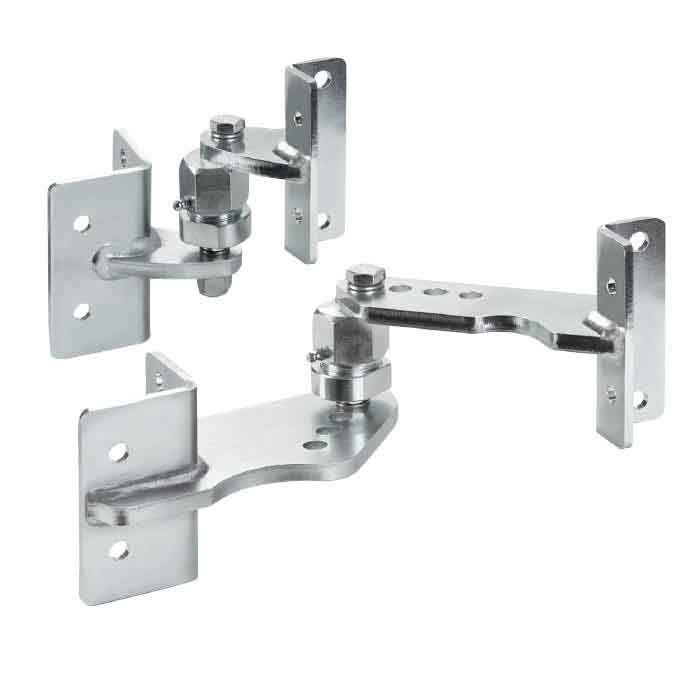

Both the top and bottom hinges have a ball joint with a grease nipple that will allow the gate to tilt during movement.

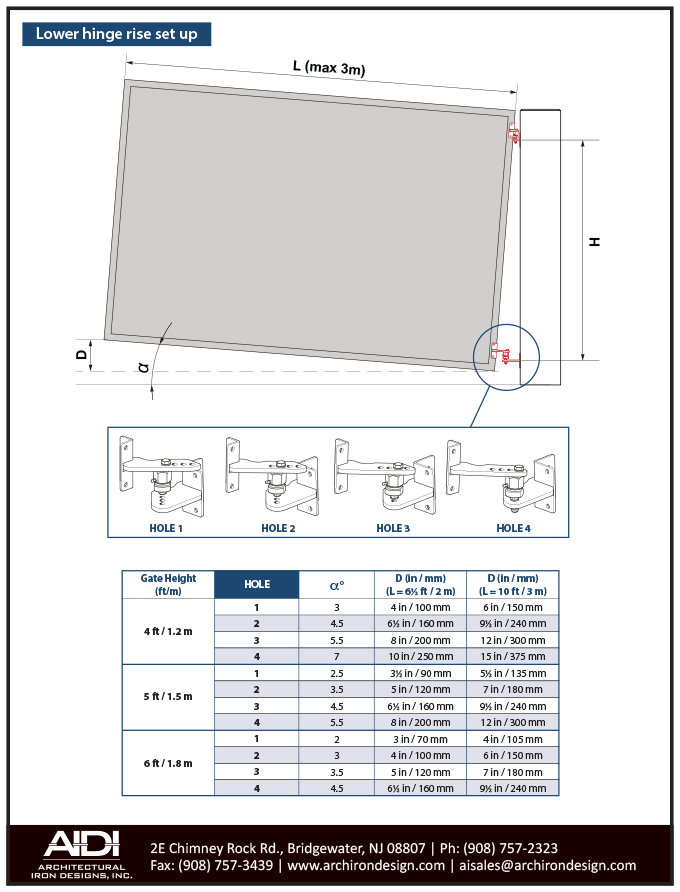

The bottom hinge has 4 holes in each bracket. Each hole corresponds to a different inclination of the leaf in the open position.
| Manufacturer Part Number | RS-100F |
|---|---|
| Brand | Comunello |
