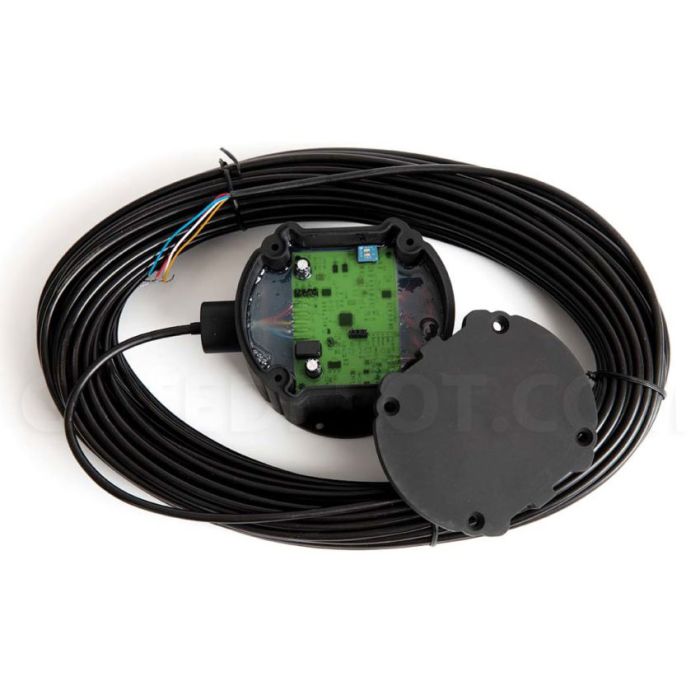

Cartell CP4 Gatemate Free Exit System

Open gates automatically as guests leave a property with this all-in-one system that works with electric or solar gates. Lowest standby current in the industry by 95%.

All-in-one unit without external circuit board. Hook wires directly to gate operator.

*NOTE* In order to get the 12 to 14 feet of detection, the vehicle must pass the sensor traveling at least FIVE MPH. Do not place sensor in close proximity to gate as it will not operate as designed. Test the application with a vehicle prior to final installation.

VERSATILE

• Sensitivity adjustment
• Universal voltage AC and DC
• Works with power or solar gate operators

DURABLE DESIGN

• IP Rating: 68
• Heat resistance
• Lightning protection
• Proven digital circuit
• Weather-resistant cable
• Strength rating: 9.53 ton-force (8646 kgf)

EASY TO USE

• Self-contained system
• Conduit-ready housing
• Industry-standard wire colors
• Low standby current results in less battery maintenance for solar applications

TECH SPECS

• Power Required: 8–24 VAC; 8–30 VDC
• Standby Current: 30–70 microamps (μA) max.
• Alarm Current: 40–50 milliamps (mA) max.
• Relay Contacts: SPDT, floating, N.O. or N.C. (Form C)
• Relay Contact Rating: 1 amp/24 VDC
• (1 mA at 5 VDC min. load)
• Relay Time: 2–3 seconds
• Temperature Range: -25°F–140°F
• Dimensions: 4.5 in diameter x 2.5 in H (11.43 cm diameter x 6.35 cm H)
• Slip Joint: 0.5 in L x 0.875 in ID (1.27 cm L x 2.22 cm ID)
