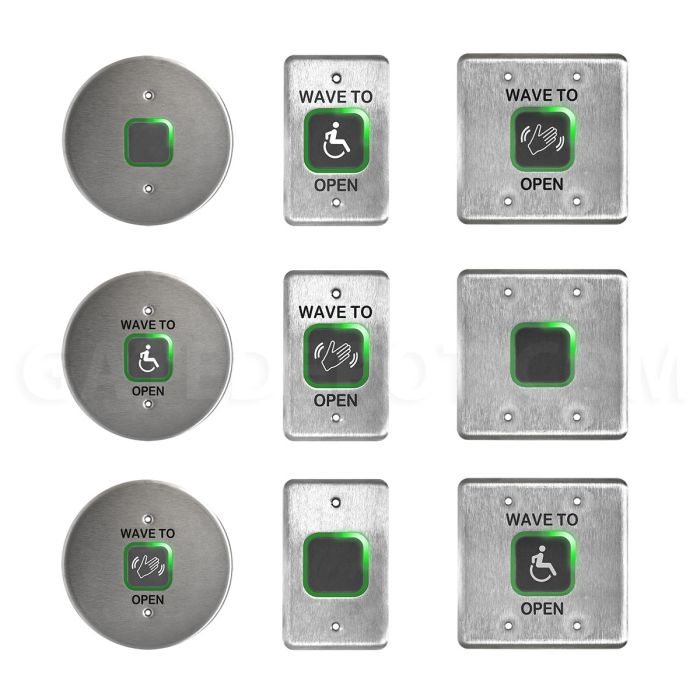

BEA 10MS41 Magic Switch Microwave Touchless Actuators
From $233.25
To $2,214.60
Product Details

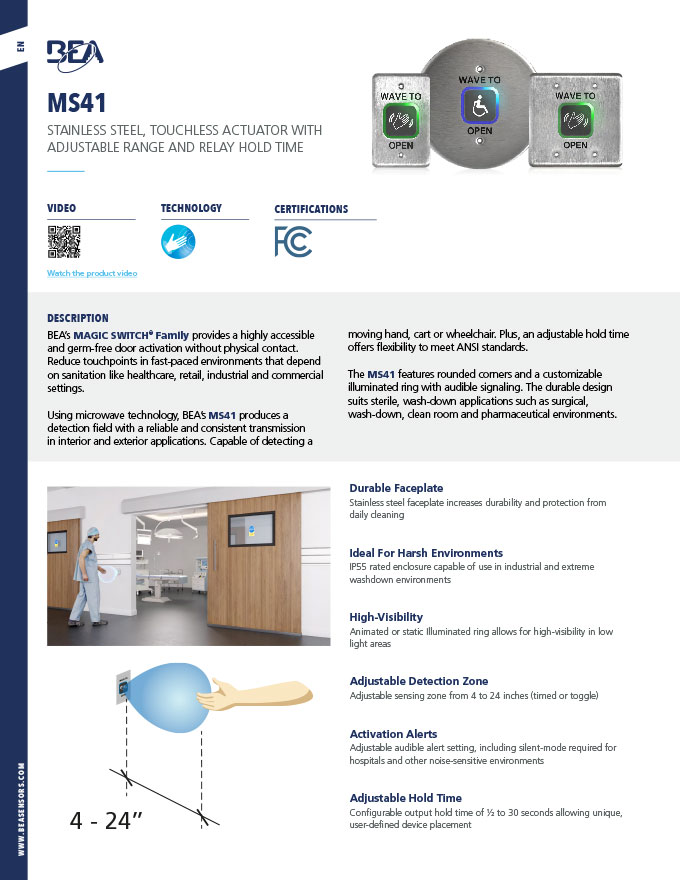

BEA's MAGIC SWITCH® Family provides a highly accessible and germ-free door activation without physical contact. Reduce touchpoints in fast-paced environments that depend on sanitation like healthcare, retail, industrial and commercial settings.
Using microwave technology, BEA's MS41 produces a detection field with a reliable and consistent transmission in interior and exterior applications. Capable of detecting a moving hand, cart or wheelchair. Plus, an adjustable hold time offers flexibility to meet ANSI standards.
The MS41 features rounded corners and a customizable illuminated ring with audible signaling. The durable design suits sterile, wash-down applications such as surgical, wash-down, clean room and pharmaceutical environments.

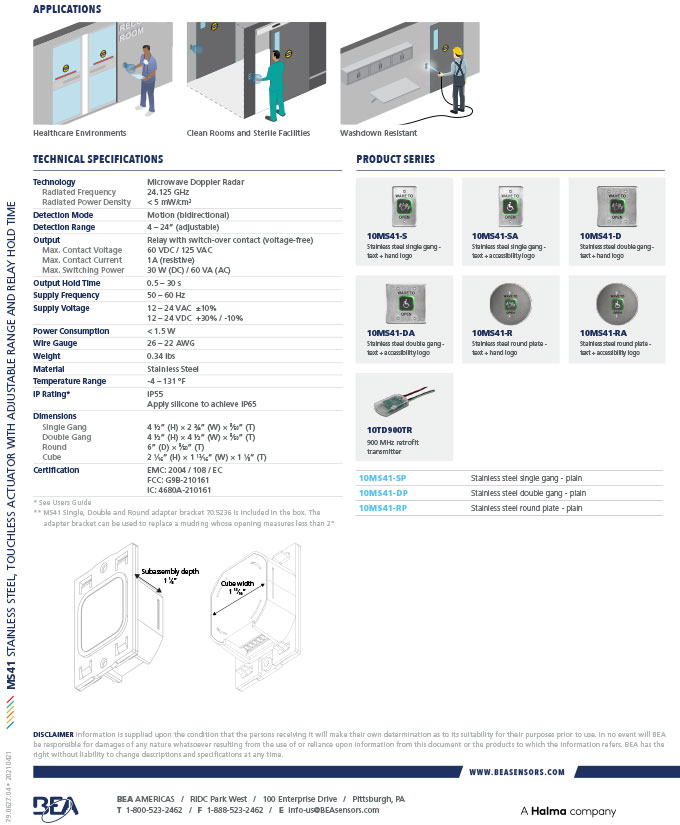

- Technology: Microwave Doppler Radar
- Radiated Frequency: 24.125 GHz
- Radiated Power Density: < 5 mW/cm2
- Detection Mode: Motion (bidirectional)
- Detection Range: 4 – 24" (adjustable)
- Output: Relay with switch-over contact (voltage-free)
- Max. Contact Voltage: 60 VDC / 125 VAC
- Max. Contact Current: 1A (resistive)
- Max. Switching Power: 30W DC / 60 VAC
- Output Hold Time: 0.5 – 30 s
- Supply Frequency: 50 – 60 Hz
- Supply Voltage: 12 – 24 VAC ±10% / 12 – 24 VDC +30% / -10%
- Power Consumption: < 1.5 W
- Wire Gauge: 26 – 22 AWG
- Material: Stainless Steel
- Temperature Range: -4 – 131 °F
- IP Rating: IP55 - Apply silicone to achieve IP65

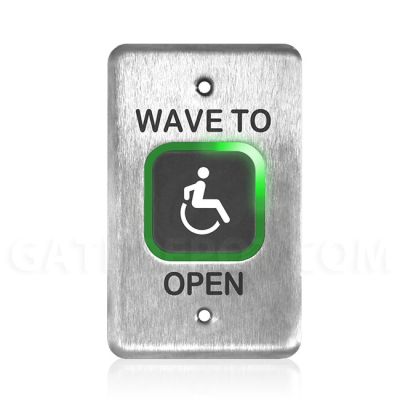

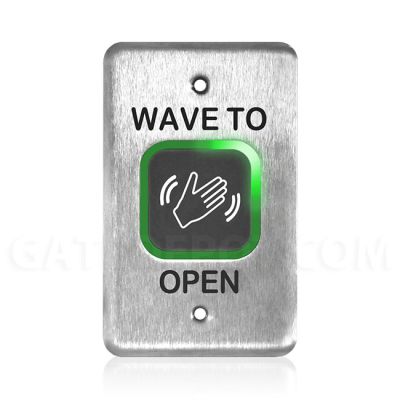

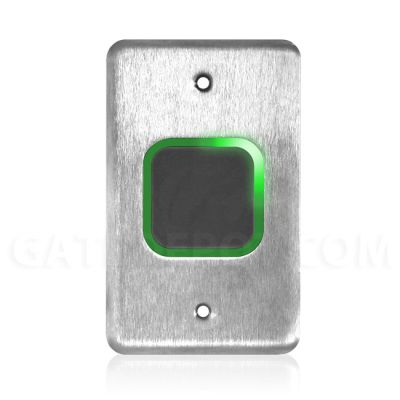

- Dimensions, Single Gang: 4 ½" (H) x 2 ¾" (W) x 9/50" (T)

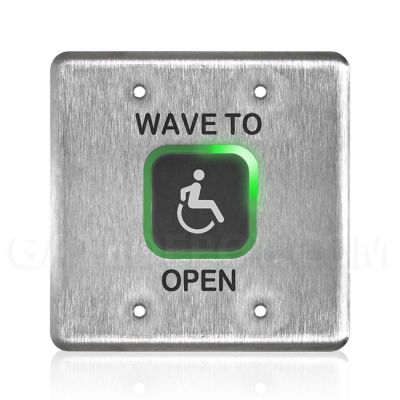

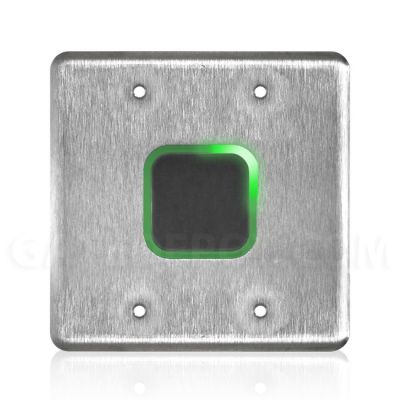

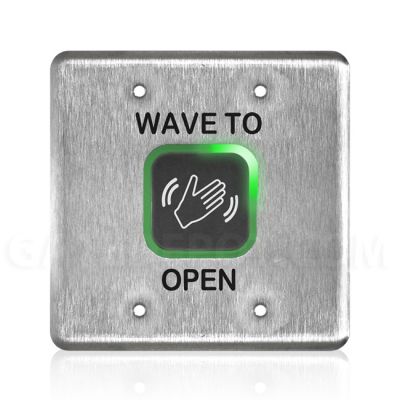

- Dimensions, Double Gang: 4 ½" (H) x 4 ½" (W) x 9/50" (T)

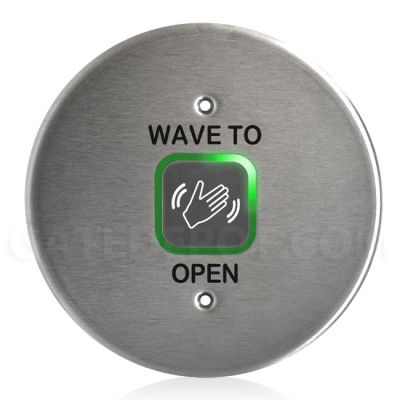

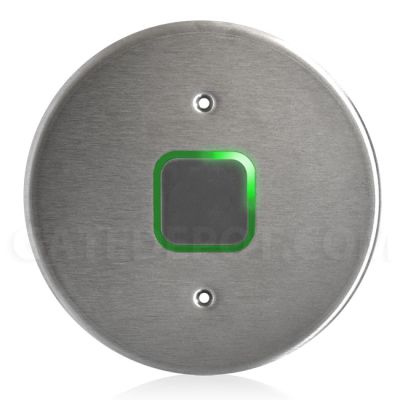

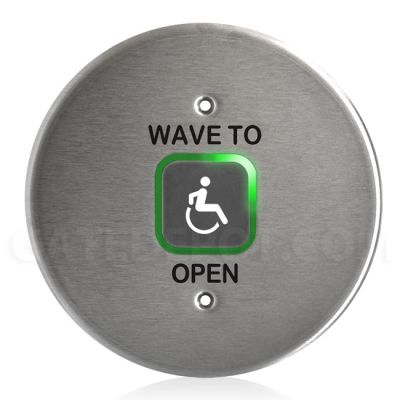

- Dimensions, Round: 6" (D) x 9/50" (T)
- Dimensions, Cube: 2 1/16" (H) x 1 13?16" (W) x 1 1/8" (T)
- Certification: EMC: 2004 / 108 / EC; FCC: G9B-210161; IC: 4680A-210161
| Brand | BEA |
|---|
