BEA 10MS31 Magic Switch Microwave Touchless Actuators
From $185.15
To $1,478.95
Product Details
BEA's MAGIC SWITCH Family utilizes proven microwave motion technology to ensure consistent, dependable touchless activation and can be adjusted to comply with the ANSI 156.10 knowing act standard.
The MS31 detects moving objects such as a hand, cart or wheelchair and reduces touchpoints in high traffic areas commonly found in shopping and transportation centers. Applications requiring hygienic activation include hospitals, pharmacies, clean rooms and foodservice facilities.

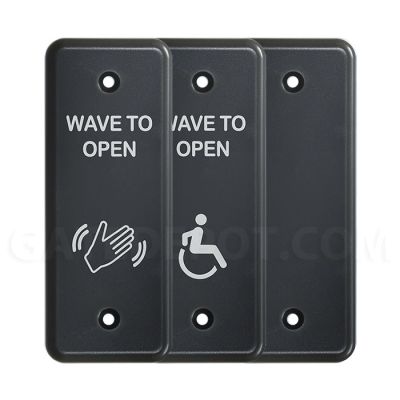

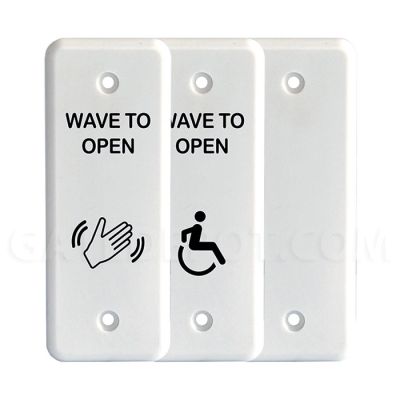

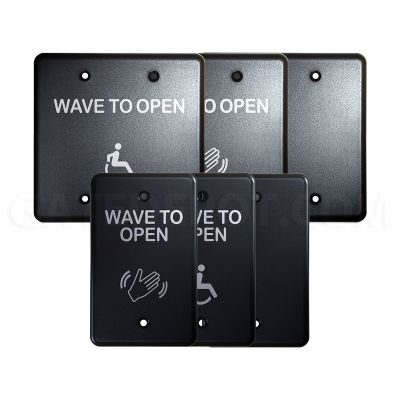

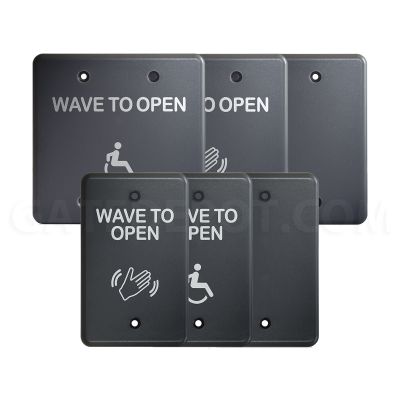

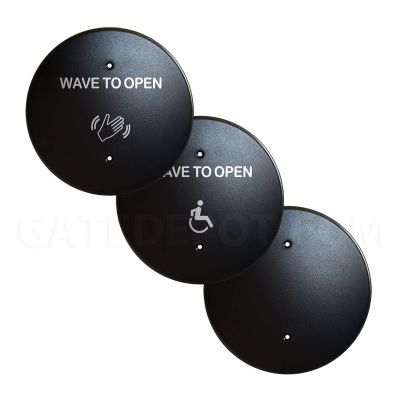

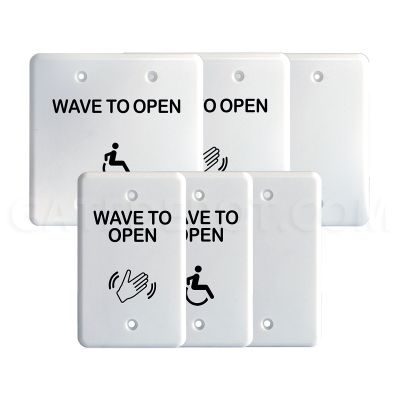

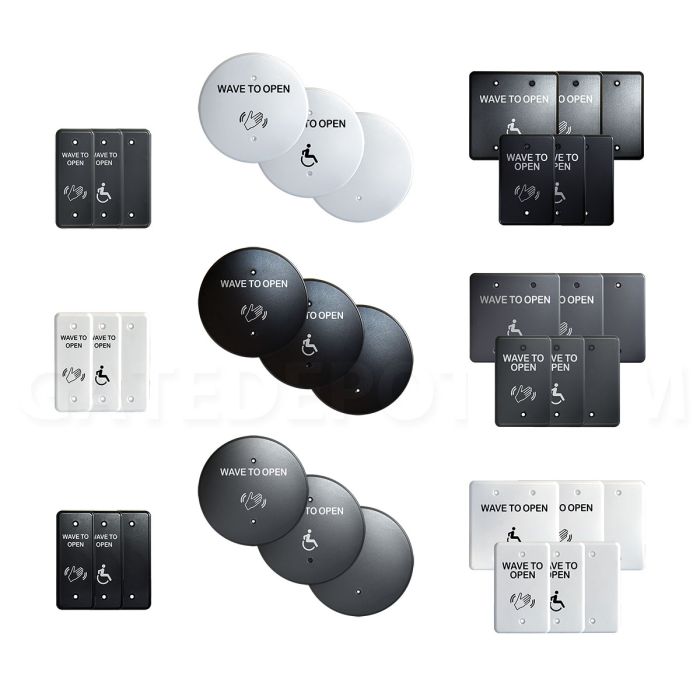

All models include faceplates with either text, text and handicap logo, or blank.
- Technology: Microwave Doppler Radar
- Radiated Frequency: 24.125 GHz
- Radiated Power Density: < 5 mW / cm²
- Detection Range: 4 – 24" (adjustable)
- Output: Relay with switch-over contact (voltage-free)
- Max. Contact Voltage: 60 VDC / 125 VAC
- Max. Contact Current: 1 A (resistive)
- Max. Switching Power: 30 W (DC) / 60 VA (AC)
- Output Hold Time: 0.5 – 30 s
- Supply Frequency: 50 – 60 Hz
- Supply Voltage: 12 – 24 VAC ±10%, 12 – 24 VDC +30% / -10%
- Power Consumption: < 1.5 W
- Material: PC, PE
- Temperature Range: -4 – 131 °F (-20 – 55 °C)
- IP Rating: IP54
- Dimensions, Single Gang: 4 ½" (H) x 2 ¾" (W) x ¼" (T)
- Dimensions, Jamb Plate: 4 ½" (H) x 1 ¾" (W) x ¼" (T)
- Dimensions, Double Gang: 4 ½" (H) x 4 ½" (W) x ¼" (T)
- Dimensions, Round Plate: 6" (D) x ¼" (T)
- Certification: EMC: 2004 / 108 / EC; FCC: G9B-210161; IC: 4680A-210161
| Brand | BEA |
|---|
