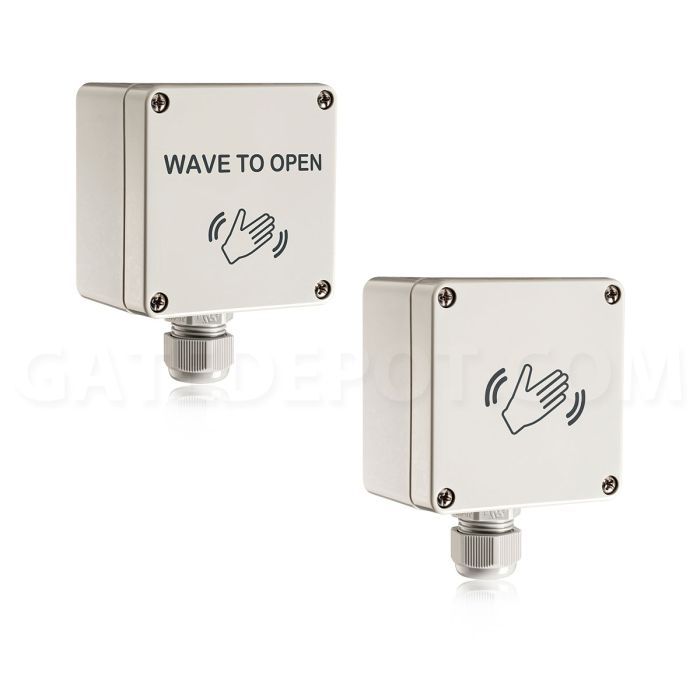

BEA 10MS09 Magic Switch Microwave Touchless Actuators
From $224.70
To $566.60
Product Details
BEA's IP65 rated MS09 is a touchless activation device with an adjustable detection zone designed for harsh and industrial environments.
The surface mount MS09 utilizes microwave motion technology to ensure consistent and dependable activation. Conduit connectivity ensures a watertight installation in harsh environments and wash-down facilities.
The MS09 detects moving objects such as a hand, pallet jack or forklift and is ideal for applications requiring a touchless activation method including hospitals, pharmacies, clean rooms and food services.
Weather-resistant housing: IP65 enclosure capable of use in industrial and extreme environments, as well as wash down facilities
Adjustable detection zone: User defined detection zone from 4 — 24 inches (pulse or toggle)
Appropriate for all environments: Can be used in a variety of indoor and outdoor applications
No mounting accessories needed: External mounting boxes are not required
- Technology: Microwave Doppler Radar
- Radiated Frequency: 24.125 GHz
- Radiated Power Density: < 5 mW / cm2
- Detection Mode: Motion (bidirectional)
- Sensing Zone: 4 — 24" (adjustable)
- Output: Relay with switch-over contact (free of potential)
- Max. Contact Voltage: 60 VDC / 125 VAC
- Max. Contact Current: 1 A (resistive)
- Max. Switching Power: 30 W (DC) / 60 VA (AC)
- Output Hold Time: 0.5 s (in pulse mode)
- Supply Voltage: 12 — 24 VAC ±10% / 12 — 24 VDC 30% / —10%
- Power Consumption: < 1.2 W
- Material / Colors: ABS / PC, White
- Cable Type: Compatible with standard, 4-conductor low voltage cable (cable not supplied)
- Temperature Range: –4 °F — 131 °F
- Degree of Protection: IP65
- Norm Conformance: EMC: 2004/108/EC / FCC: G9B-MS08/2ABWS-10TD900PB / IC: 4680A-MS08/4680A-10TD900PB
- Dimensions: 3.15" (W) x 3.23" (H) x 2.165" (D)
| Brand | BEA |
|---|
