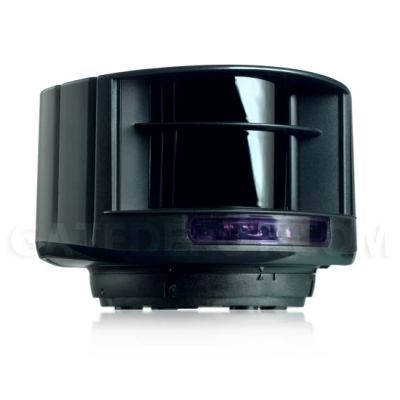

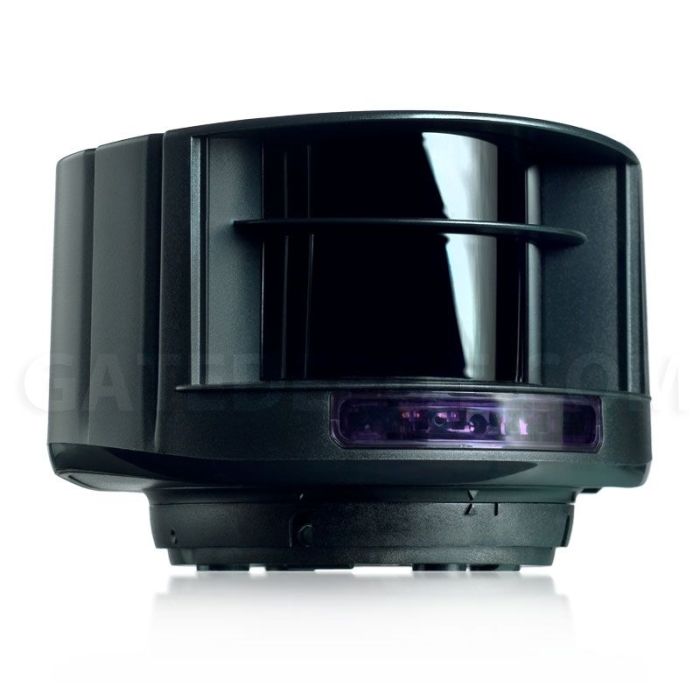

BEA 10LZRI30 Laser Scanner - Industrial Automation
From $918.60
To $1,539.30
Product Details
BEA's LZR®-I30 is a LASER-based Time-of-Flight sensor. This high precision technology ensures accurate object detection. The product configuration provides four LASER-based curtains offering a three dimensional safety zone. The sensor is designed for the detection of people and vehicles, in both indoor and outdoor environments. Its detection accuracy makes this sensor ideal for high performance industrial doors, vehicle flow safety, perimeter protection and variety of applications. The LZR-I30 is housed in an IP65 rated enclosure and can be installed in outdoor, industrial and other harsh environments. Three visible LED spots provide accurate reference points when adjusting the tilt angle. Parameter adjustments can be made with a BEA universal remote control.
- Technology: LASER scanner, Time-of-Flight measurement
- Detection Mode: Motion / Presence (EN 12453 Typ. E)
- Max. Detection Range: 30' x 30'
- Remission Factor: > 2%
- Emission Characteristics, IR LASER: Wavelength 905 nm; output power 0.10 mW (CLASS 1))
- Emission Characteristics, Red Visible LASER: Wavelength 635 nm; output power 0.95 mW (CLASS 2)
- Supply Voltage: 10 – 35 VDC @ Sensor Terminal (to be operated from SELV compatible power supplies only)
- Peak Current at Power-On: 1.8 A (Max. 80 ms @ 35 V)
- Power Consumption: < 5 W
- Response Time: Typ. 20 ms; max. 80 ms (+ output activation delay)
- Output: 2 electronic relays (galvanic isolated – polarity free)
- Max. Switching Voltage: 35 VDC / 24 VAC
- Max. Switching Current: 80 mA ( resistive )
- LED-Signal
- 1 Blue LED: Power–on
- 1 Orange LED: Error status
- 2 Bi-colored LEDS: Detection / Output Status
- (Green = no detection, Red = detection)
- Dimensions: 5" (W) x 2 ¾"(H) x 3 2?3 (D)
- Cable Length: 30'
- Material: PC / ASA
- Color: Black
- Rotation Angle on Bracket: ±5° (Lockable)
- Tilt Angle on Bracket: ±3°
- Degree of Protection: IP65
- Temperature Range: -22 – 140 °F if powered / 14 – 140 °F if unpowered
- Humidity: 0 – 95% non-condensing
- Vibrations: < 2 G
- Pollution on Front Screens: Max. 30%; Homogenous
- Test Body Dimensions: 700 mm x 200 mm x 200 mm (test body A according to EN 12445)
- Norm Conformity: 2006 / 95 / EC: LVD; 2002 / 95 / EC: RoHS; 2004 / 108 / EC: EMC; 2006 / 42 / EC: MD; EN 12453:2000 chapter 5.1.1.6, chapter 5.5.1 Safety device E; EN 12978:2009; EN ISO 13849-1:2008 CAT2, Pl "d"; EN 60529:2001; IEC 60825-1:2007; EN 60950-1:2005; EN 61000-6-2:2005; EN 61000-6-3:2006; IEC 61496-1:2009; EN 61496-3: 2008 ESPE Type 2; EN 62061:2005 SIL 2
| Brand | BEA |
|---|
