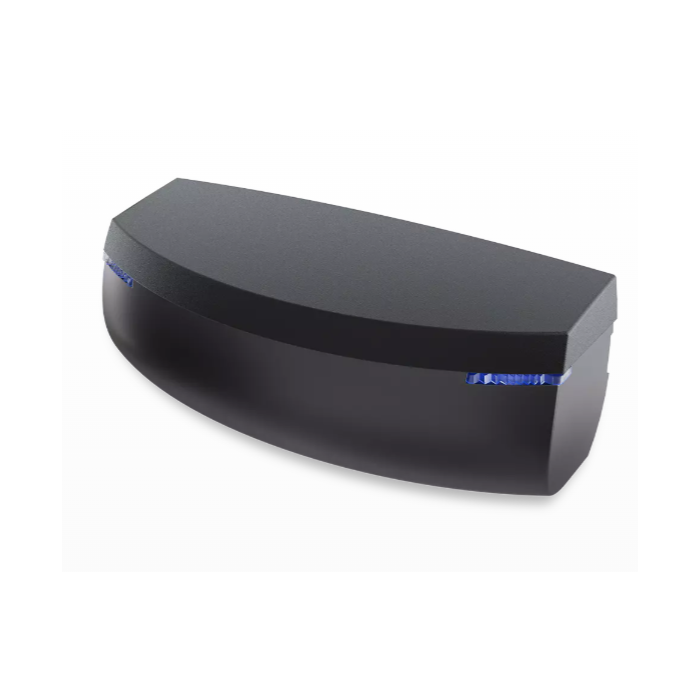

BEA 10EAGLEARTEK Compact Motion Sensor for Automatic Doors

BEA’s EAGLE ARTEK is a motion sensor for all types of automatic doors. Its slim and compact design ensures discreet integration for your application.

EAGLE ARTEK offers superior field performance with improved filters that help to reduce false detections that lead to increased energy costs.

This sensor is easy to install and set up with flexible parameters and simple push-button settings. Unlike legacy sensors, the detection field can be adjusted without changing the antenna manually.

A variety of installation accessories are available, making the EAGLE ARTEK a convenient activation solution for any environment.

Technology - Microwave

Detection mode - motion

Transmitter frequency - 24.15 GHz

Transmitter radiated power - < 20 dBm EIRP

Transmitter power density - < 5 mW/cm2

Max. detection range wide - 13’ × 6.5’

narrow - 6.5’ × 7’ (@ 7’ high)

Min. detection speed - 2 in/s

Supply voltage* - 12 to 24 VAC ±10% (50 or 60 Hz) or 12 to 24 VDC +30% / -10%

Max. power consumption - < 1 W

Output* - solid-state relay (free of polarity)

Max. switching voltage - 30 VAC / 42 VDC

Max. switching current - 100mA (resistive)

Mounting height - 6 to 13’

Tilt angles - 0 to 90° vertical and 30 – 30° lateral

Temperature range - (-4) to (131 °F)

Dimensions - 4.72” (L) × 1.96” (H) × 1.96” (W)

Material - ABS

Weight - 120 g

Cable length - 8’

Degree of protection - IP54

FCC - G9B-100606

IC - 4680A-100606

* External electrical sources must be within specified voltages, max 100 W, and ensure double
