All-O-Matic MACH-PRIME Column Mount Operator

Be the first to review this product

• 8' x 500 Lbs • 120/220VAC Power Source or 24VDC Solar Compatible • 24VDC Operational Voltage • Adjustable – Opens 90° in 14~25 seconds • Continuous Duty, Brushless Motor • 24VDC Battery Backup System w/ (2) 7-Ah Batteries • Sindle Includes 1 Photo Eye / Dual Includes 2 Photo Eyes • 7 / 5-Year Limited Manufacturer Warranty • MADE IN USA

From $2,505.00

To $4,890.25

SKU

AOM-mach-prime-bundle

Skip to the end of the images gallery

VIEW MANUALS, BROCHURES & VIDEOS

Skip to the beginning of the images gallery

Customize All-O-Matic MACH-PRIME Column Mount Operator

All-O-Matic MACH-PRIME Column Mount Operator Kits

Kits Include Operator(s) & Control Box

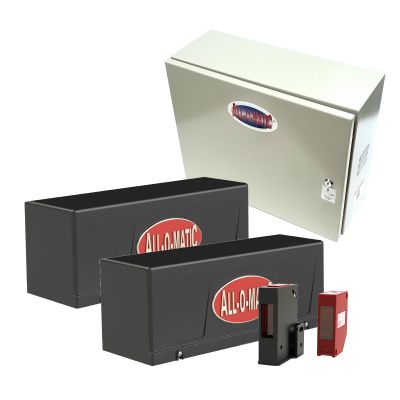

All-O-Matic MACH-PRIME Column Mount Operator - Dual Kit $2,505.00

• 8' x 500 Lbs - Dual Kit • 120/220VAC Power Source or 24VDC Solar Compatible • 24VDC Operational Voltage • Adjustable – Opens 90° in 14~25 seconds • Continuous Duty, Brushless Motor • 24VDC Battery Backup System w/ (2) 7-Ah Batteries • Includes 2 Photo Eyes • 7 / 5-Year Limited Manufacturer Warranty • MADE IN USA

GD# AOM-mach-prime-dual MFR# MACH-PRIME-DUAL

Quantity

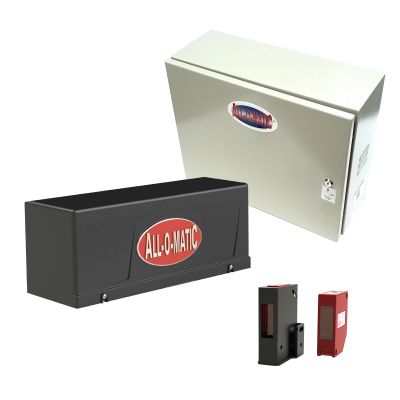

All-O-Matic MACH-PRIME Column Mount Operator - Single Kit $1,555.00

• 8' x 500 Lbs - Single Kit • 120/220VAC Power Source or 24VDC Solar Compatible • 24VDC Operational Voltage • Adjustable – Opens 90° in 14~25 seconds • Continuous Duty, Brushless Motor • 24VDC Battery Backup System w/ (2) 7-Ah Batteries • Includes 1 Photo Eye • 7 / 5-Year Limited Manufacturer Warranty • MADE IN USA

GD# AOM-mach-prime-single MFR# MACH-PRIME-SINGLE

Quantity

Receiver & Transmitter

LiftMaster 850LM-MC Receiver - 3 Channel / Universal $68.50

• Universal 3-Channel Receiver • 90 Transmitter Capacity • 310/315/390 MHz • Security+ 2.0 Compatible • 1-Year Limited Manufacturer Warranty

GD# LFM-850lm-mc MFR# 850LM-MC

Quantity

LiftMaster 811LMX-MC Transmitter - 1 Button $17.50

• 1-Button Visor Style • 310/315/390 MHz • Security+ 2.0 • 12 position DIP Switch

GD# LFM-811lmx-mc MFR# 811LMX-MC

Quantity

Keypad

Liftmaster KPW5-MC Wireless Keypad $144.75

• Surface or Pedestal Mount • 5 Permanent / 10 Temporary PINs • Up to 500' Range • 310/315/390 MHz • Security+ 2.0 Compatible • Housing NEMA 3R / Electronics NEMA 4X • Backlit Keys

GD# LFM-kpw5-mc MFR# KPW5-MC

Quantity

Liftmaster KPW250-MC Wireless Keypad - Universal $243.25

• Surface or Pedestal Mount • 250 Permanent / 10 Temporary PINs • Up to 500' Range • 300/310/315/390 MHz • MultiCode / Security+ 2.0 Compatible • Weatherproof • Backlit Keys

GD# LFM-kpw250-mc MFR# KPW250-MC

Quantity

Exit Wand

EMX 2805-1 VMD202-5-50 Probe Vehicle Motion Detector - 50' Lead $138.75

• 50' Lead • Probe assembly and cable are water tight and direct burial compatible • Settings are placed in a non-volatile memory in case of power failure • Accepts wide range of power inputs from 12-39 VDC or 12-27 VAC • Low current consumption of 70 µA standby and 25 mA activated • 2-Year Limited Manufacturer Warranty • MADE IN USA

GD# EMX-2805-1 MFR# EMX-2805-1

Quantity

Solar Package for Solar Operation

Platinum Access SOL-24V-20CS Solar Charge System - 24V / 20Ah $217.50

• 24 Volt • Two 12V 20AH Gel Batteries • Powdercoated Steel Battery Box

GD# PAS-sol-24v-20cs MFR# SOL-24V-20CS

Quantity

* Required Fields

Your Customization

All-O-Matic MACH-PRIME Column Mount Operator

In stock

Qty

$2,505.00

Summary

Overview

Product Details

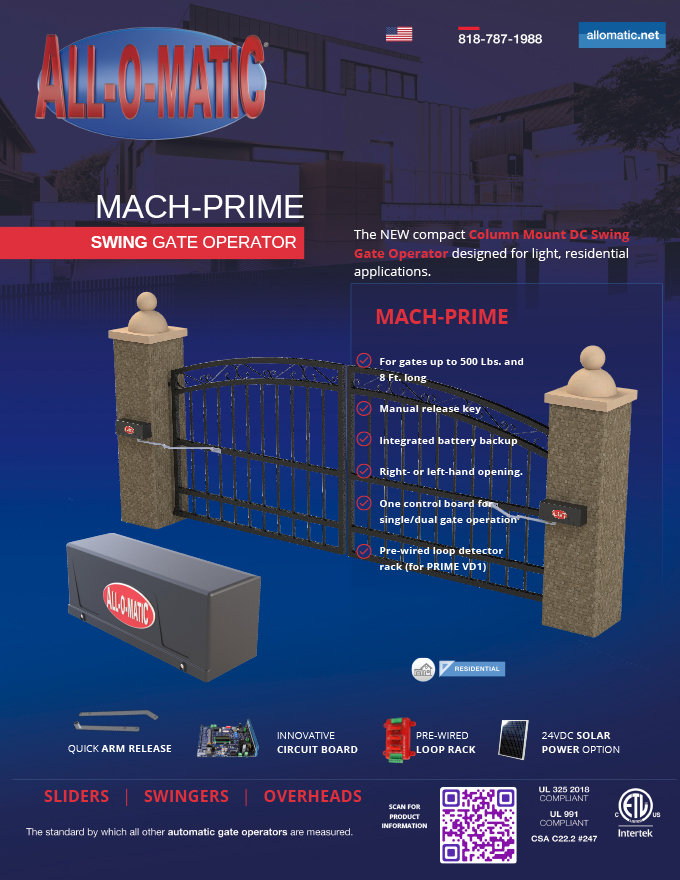

Introducing All-O-Matic's new Mach-Prime automatic column mount swing gate operator, a solution designed to provide simplicity, versatility, and convenience for gates up to 8 feet wide and weighing up to 500 lbs. It delivers a smooth and virtually silent gate movement so that you may enjoy the convenience of an automated gate without any disruptive noise. The Control board boasts programmable logic and an advanced charge controller optimized for solar applications. It supports 12/24V solar panels up to 80 watts, making it suitable for most residential applications.

Features
