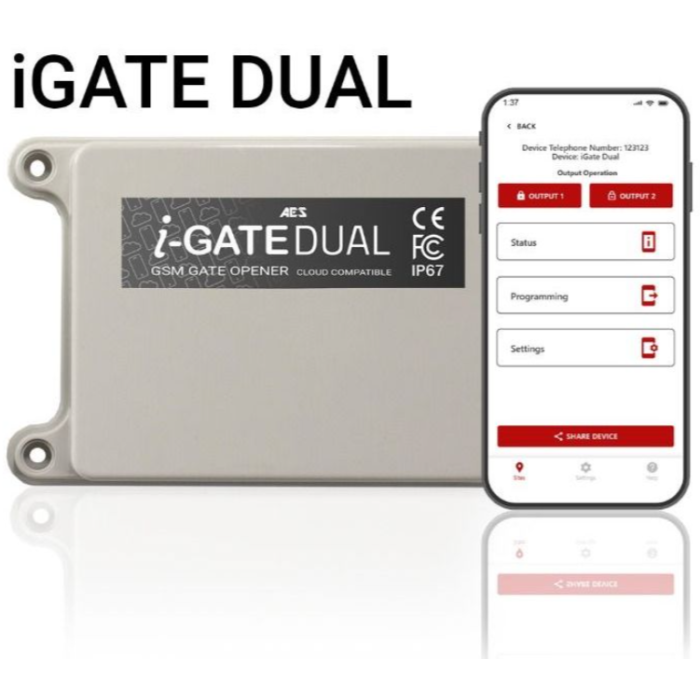

AES Global IGATE-DUAL-US Cellular Gate Opener with 2 Relays

I-GATE-DUAL

Unlock access with a call – advanced GSM switch supporting wireless e-Loops and future cloud integration.

The latest i-Gate Dual is an upgrade to our Advanced GSM Gate Opener. This unit hosts new features that improve functionality and performance.

E-LOOP INTEGRATION

The i-Gate Dual also integrates connection features with our e-Loop* range!

FEATURES

• E-loop integration plugin PCB.
• RGB status for instant indication of devices network connectivity.
• Push-to-exit select relay 1 or 2 and also set active times of operation.
• Automatic Daylight Saving Time (DST)setting.
• Customisable SMS replies to Trigger, Latch and Unlatch commands
• Programmable with the AES GSM APP.
• Automatic APN detection on selected major networks.
• Remote sms diagnostics features including modem reboot and dial test.
• Regular status reports choose between daily and weekly reports to confirm online status.
• Comprehensive Events Log including automatic openings, push-to-exit events, and SMS and E-Loop operations.
• Works with our multi network AESIM.
• aesglobaltelecom.com

SPECIFICATIONS

• Weather rating - IP67
• Relays - 2
• Relay Type - N/C and N/O
• Relay Load - 5A, 24V AC Max
• Power Consumption - 30mA (Standby), 80mA (When Called)
• Modem Model - 4G EU, 4G AU, 4G US
• Power - 12-24v AC/DC (units applied)
• Caller ID number - 1280
• Time Restricted Caller ID - Numbers 250
• Automatic Trigger Events - per Week 50
• Push-to-Exit Timed Events - per Week 5
