AES Global e-LOOP EL00M Loops - Mini / Exit Mode

The E-loop Mini is an exceptional wireless vehicle detection system that is perfectly suited for domestic house settings. With its compact design and easy installation seamlessly integrate into any residential environment without disrupting the aesthetic appeal.

The E-loop Mini operates wirelessly, eliminating the need for complex wiring or extensive installation processes. Simply connects to an existing gate controller via a wireless transmitter. This cutting-edge technology provides homeowners with a hassle-free solution for opening their entrances/gates.

The E-loop Mini effortlessly combines convenience, efficiency, and advanced technology, making it the perfect addition to any domestic house setting.

EL00M

• Exit mode
• Quick and easy installation
• Magnetic field detection
• Uses standard 1.5V AA Lithium batteries (included) providing up to 3-4 years of battery life
• Small compact design 4-3/4" x 4-3/4" x 1-3/16" high
• Static load capacity 5500 lbs
• Range up to 50 yards
• High-security 128-bit encryption
• Kits include e-Loop, transceiver & concrete fixing bolts

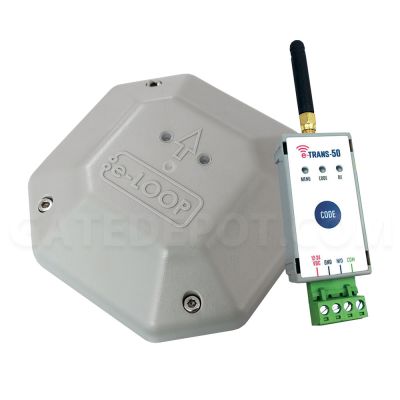

e-Trans50

Introducing a bidirectional wireless access control system for gate and door applications.

• Compact design with exceptional range
• SMA connector for standard for optional long-range antenna connection
• Wide Voltage Range: 10-36V DC
• Exceptionally low Current draw: standby 4.5 m/a, active 30 m/a
• Frequency: 433.39 MHz
• Remote storage: 50 remotes, 4 x e-Loops, 4 x Keypads, 4 x Entry Buttons
• Relay: 1-amp contact rating, COM and N/O connections x 1 relay
• Multiple Modes: Pulse, Latch and Hold

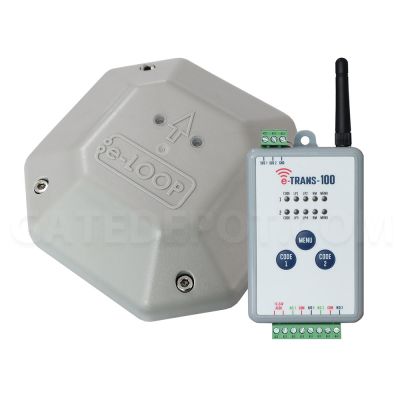

e-Trans100

Two Channel Transceiver.

• 2 channel transceiver
• Long range with SMA connector for external antenna options
• Stores 2 x e-Loops and 50 x remotes in each channel
• 10-28VAC or 10-36VDC power input
• Low current draw 12mA in standby, can be set to LDC mode
• 4.5mA for solar applications
• 433.39 MHz frequency
• 250 Hz bandwidth
• 128bit AES encryption for total security
• 2 x 1A relay contacts
• NC/NO/COM outputs
• Can be set to pulse latch or hold mode
• Suspension inputs for each relay

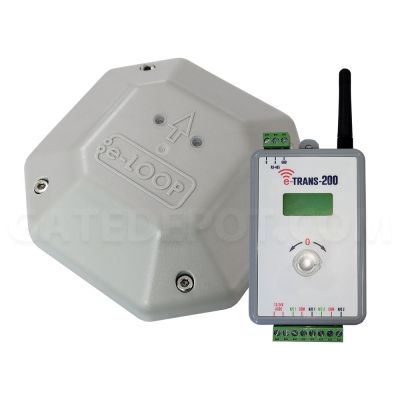

e-Trans200

With a unique lock-out function, this high-end accessory is designed to manage access control for commercial multi-unit complexes with up to 200 units, with functions also suitable for home systems.

• Simple to use menu functions with LCD display
• High sensitivity 433 MHz -126 dBm receiver with 20 dBm Transmission output
• External SMA connector to allow for the connection of different antennas
• Wide input voltage range from 10V to 36V ACDC
• 2 relay outputs with the ability to set to Pulse, Hold or Latch mode
• Selectable ultra-low standby power consumption of only 4.5 m/a making it ideal for solar applications
• 200 code storage with remote ID selection making it ideal for unit applications
• Ability to delete individual remote devices
• Unique lock-out feature allowing you to lock out entry buttons, e-Loops and keypads using the lock and unlock function on the e-Remote
• Ability to connect to the e-Loop to access menus and change settings
• Test mode allows you to test relay outputs, signal strength, and interference

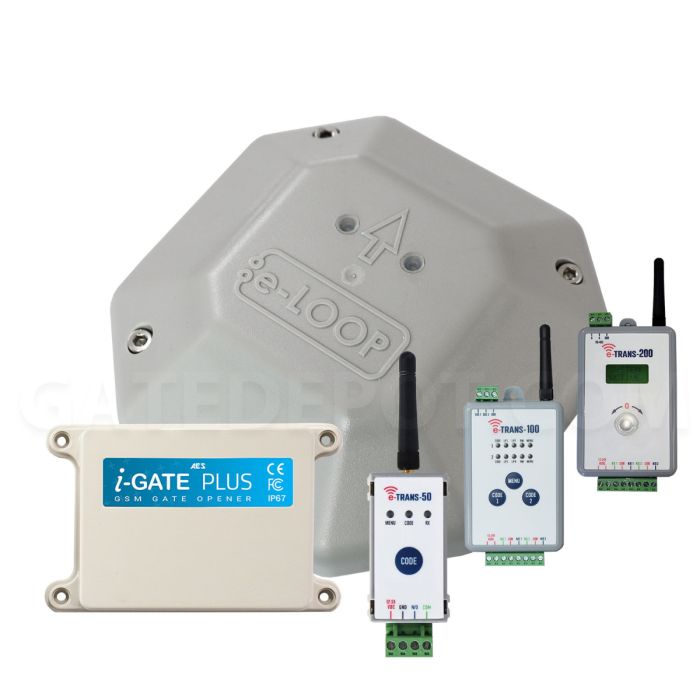

e-TransPlus Plugin

Get more out of the e-Loop by connecting the e-Trans-plus plug-in. This device plugs into our latest I-gate unit the I-Gate-Plus, which gives the user extra features.

• Set auto relay times
• Set do not disturb times
• SMS low battery notification
• Set e-Loop lock out times
• Program mode
