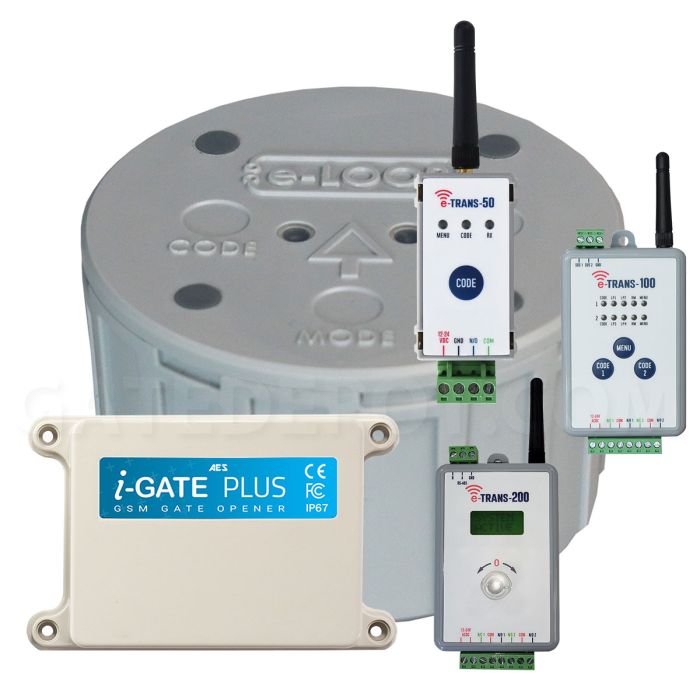

AES Global e-LOOP EL00IG Loops - Inground / Presence Mode

With the same features as the surface commercial e-LOOP, the inground unit seamlessly integrates into the pavement, creating a sleek and unobtrusive appearance. This design eliminates any potential tripping hazards or obstructions, ensuring a safe and visually appealing environment for pedestrians and vehicles.

The flush unit also provides durability and resistance to heavy loads, making it suitable for high-traffic areas such as busy parking lots or loading docks. With it?s unassuming presence and robust construction make the E-loop commercial an ideal choice for businesses that prioritize both functionality and aesthetics, creating a seamless and professional impression for their commercial spaces.

Available in both presence mode & Exit mode loops.

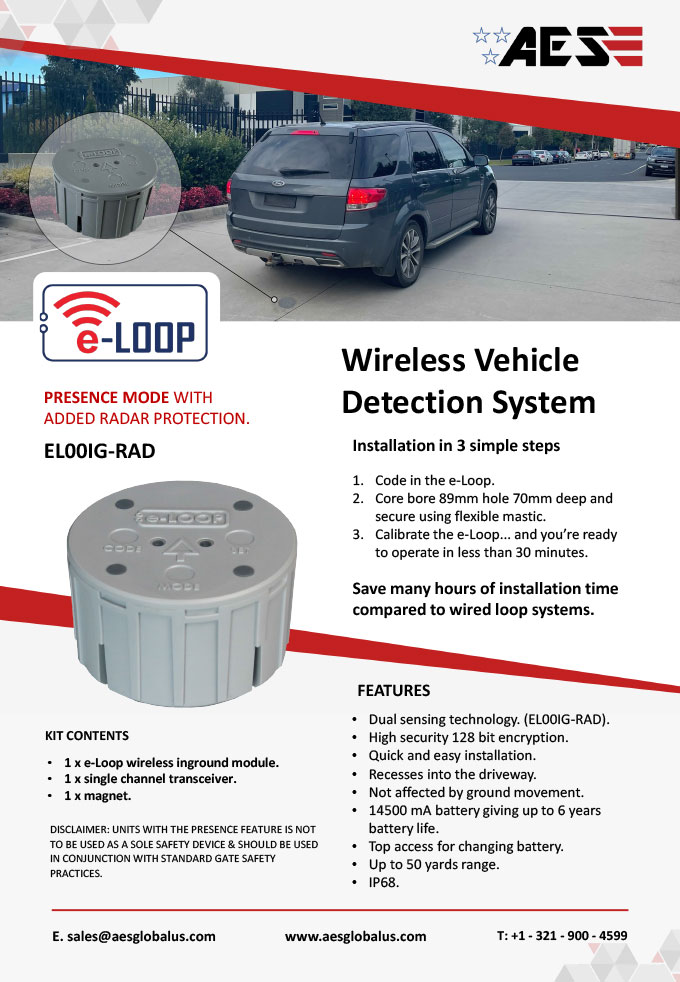

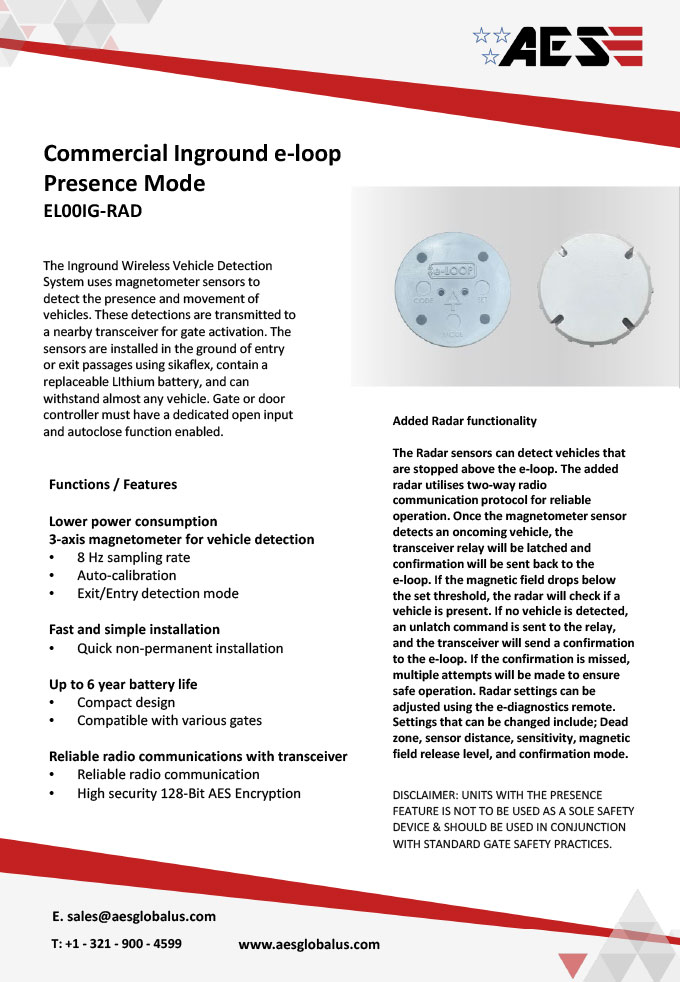

EL00IG-RAD

• Presence mode
• Quick and easy installation
• Dual sensor technology – Magnetic field and Radar detection
• Recesses into driveway, Compact profile – 2.1" diameter x 3.4" high (IP68)
• Not affected by ground movement
• High security 128 bit encryption
• 14500 mA battery giving up to 6-10 years of battery life
• Top access for changing the battery
• Up to 50 yards range
• Kits include e-Loop, transceiver, & magnet

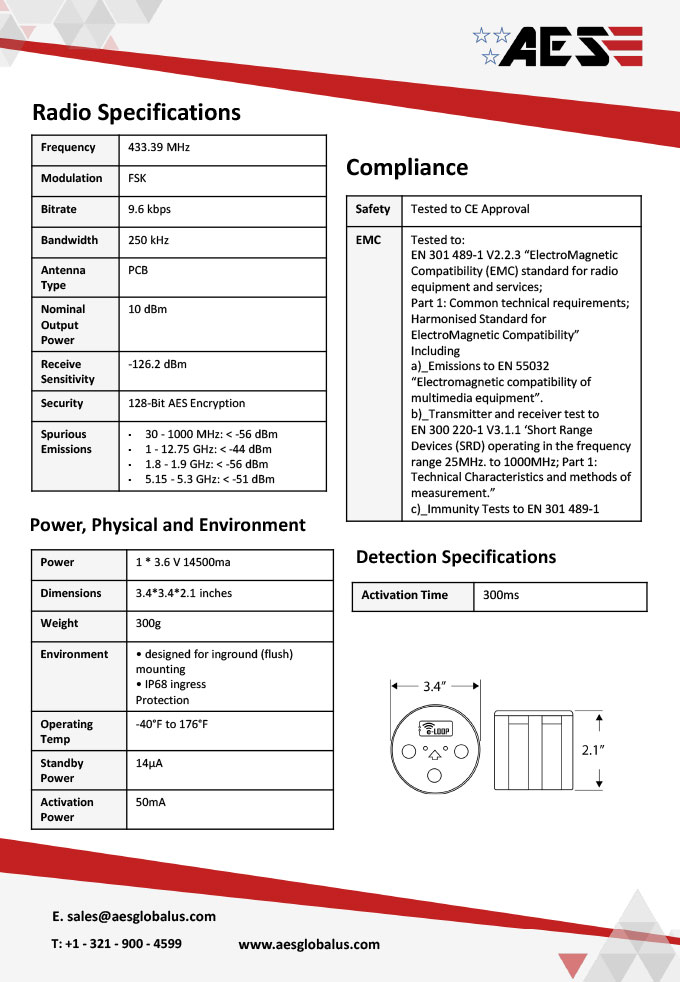

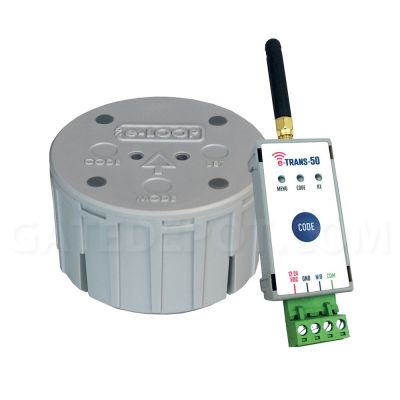

e-Trans50

Introducing a bidirectional wireless access control system for gate and door applications.

• Compact design with exceptional range
• SMA connector for standard for optional long-range antenna connection
• Wide Voltage Range: 10-36V DC
• Exceptionally low Current draw: standby 4.5 m/a, active 30 m/a
• Frequency: 433.39 MHz
• Remote storage: 50 remotes, 4 x e-Loops, 4 x Keypads, 4 x Entry Buttons
• Relay: 1-amp contact rating, COM and N/O connections x 1 relay
• Multiple Modes: Pulse, Latch and Hold

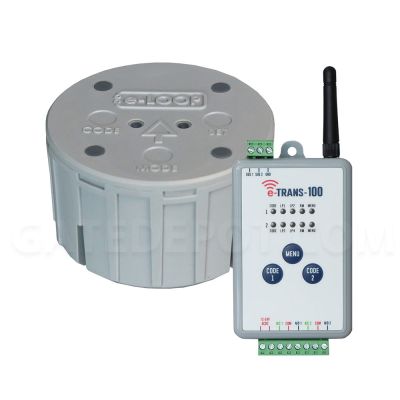

e-Trans100

Two Channel Transceiver.

• 2 channel transceiver
• Long range with SMA connector for external antenna options
• Stores 2 x e-Loops and 50 x remotes in each channel
• 10-28VAC or 10-36VDC power input
• Low current draw 12mA in standby, can be set to LDC mode
• 4.5mA for solar applications
• 433.39 MHz frequency
• 250 Hz bandwidth
• 128bit AES encryption for total security
• 2 x 1A relay contacts
• NC/NO/COM outputs
• Can be set to pulse latch or hold mode
• Suspension inputs for each relay

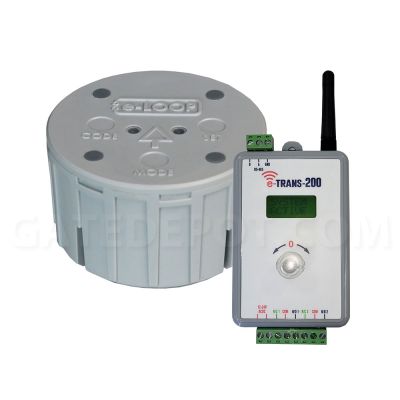

e-Trans200

With a unique lock-out function, this high-end accessory is designed to manage access control for commercial multi-unit complexes with up to 200 units, with functions also suitable for home systems.

• Simple to use menu functions with LCD display
• High sensitivity 433 MHz -126 dBm receiver with 20 dBm Transmission output
• External SMA connector to allow for the connection of different antennas
• Wide input voltage range from 10V to 36V ACDC
• 2 relay outputs with the ability to set to Pulse, Hold or Latch mode
• Selectable ultra-low standby power consumption of only 4.5 m/a making it ideal for solar applications
• 200 code storage with remote ID selection making it ideal for unit applications
• Ability to delete individual remote devices
• Unique lock-out feature allowing you to lock out entry buttons, e-Loops and keypads using the lock and unlock function on the e-Remote
• Ability to connect to the e-Loop to access menus and change settings
• Test mode allows you to test relay outputs, signal strength, and interference

e-TransPlus Plugin

Get more out of the e-Loop by connecting the e-Trans-plus plug-in. This device plugs into our latest I-gate unit the I-Gate-Plus, which gives the user extra features.

• Set auto relay times
• Set do not disturb times
• SMS low battery notification
• Set e-Loop lock out times
• Program mode
