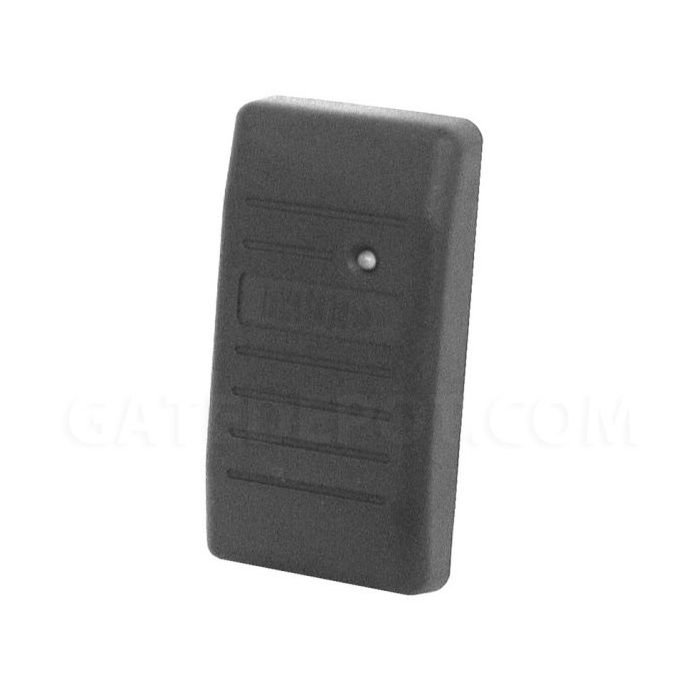

Security Brands RemotePro CR 40-006 RFID Proximity Reader - HID ProxPoint
• HID® ProxPoint® proximity reader
• Surface mount
• 26-bit Wiegand output
• 16.5VAC transformer included
MPN:
40-006
$261.95
SKU
SBI-40-006
Product Details
The RemotePro CR series is designed to operate in conjunction with our Ascent family (select models), Edge family, and many other popular security management systems using a 26-bit Wiegand protocol. Simply connect the RemotePro CR of your choice to a new or existing master controller (via 6-conductor, 22-gauge wire) and you have immediate access control.
- Input: 16.5VAC (transformer included)
- Output: n/o or n/c contact 1-99 second
- Operating temperature: -15 to 175 Fahrenheit
- Dimensions: 6.625h x 5.50w x 4.25d
- Relay Specs
- DC Load AC Load
- Contact Rating 1A @ 24V .5A @ 120V
- Max. switching voltage 150V 220V
- Max. carrying current 2A 2A
- Max. switching power 28W 60VA
| Manufacturer Part Number | 40-006 |
|---|---|
| Brand | Security Brands |
