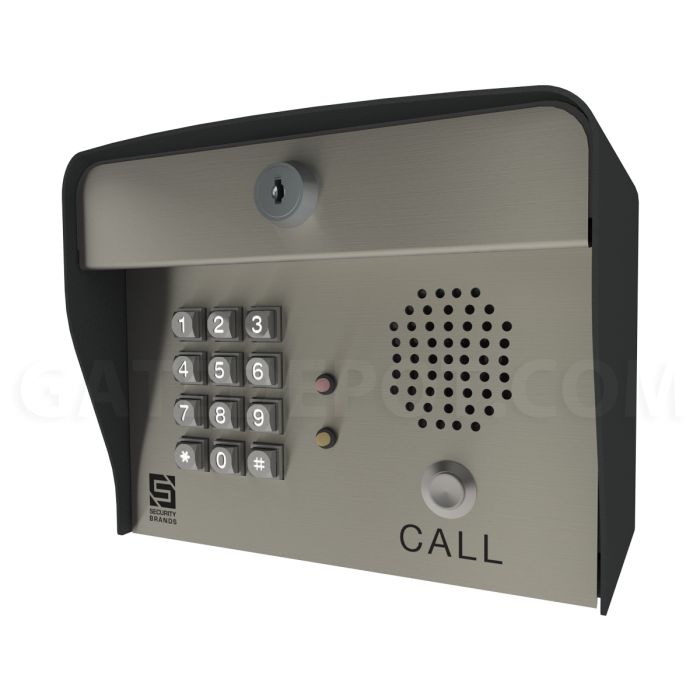

Security Brands Advantage ADV-1000i Digital Keypad w/ Intercom - 1,000 Codes

The Advantage DK line of keypads offers a selection of post-mount and surface-mount models and is available with a call button and durable 8-ohm speaker allowing integration with a built-in intercom station. It is fully programmable from the keypad. Post-mount models feature a high-grade stainless-steel faceplate and metal keypad and are housed in a powder-coated steel enclosure that will provide years of trouble-free entry.

The Advantage DK line of keypads offers just the right product for your application. Each model offers 1,000 fully programmable keypad codes, a programmable latch code and sleep code, "3 strikes, you're out" security, two relays, and an external event input.

FEATURES:

• Control up to 2 gates/doors
• 1,000 four-digit code capacity
• "3 strikes, you're out" security
• Personal master code
• Latch code
• Sleep code
• Variable relay time
• Event input
• Non-volatile memory
• Audible tones and LED feedback
• Nightlight

SPECIFICATIONS

• Dimensions: 5.25 (H) x 4.75 (W) x 4.50 (D)
• 16-gauge stainless-steel faceplate
• 16-gauge powder-coated steel enclosure
• Input: 12-24 VAC/DC
• Output: n/o or n/c contact 1—99 seconds
• Intercom: 8-ohm Mylar speaker
• DC Load AC Load
• Contact Rating 1A @ 24V .5A @ 120V
• Max. switching voltage 150V 220V
• Max. carrying current 2A 2A
• Max. switching power 28W 60VA
• Operating temperature: -15 to 175®F
• Two-year limited warranty
