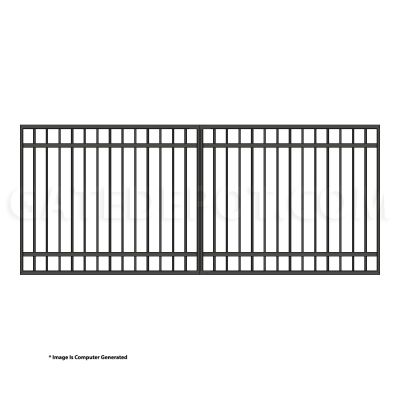

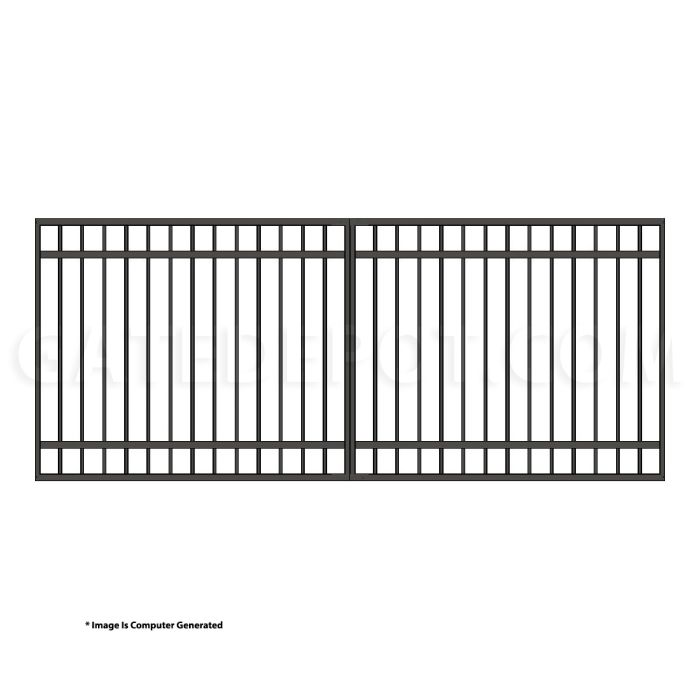

DuraGate Modular Flat Top Driveway Gate - Single / 12' W x 5' H

We have taken our years of experience and knowledge of the gate industry and applied it towards the design and construction of our residential / light industrial line of gates. Manufactured exclusively for Gate Depot, using our exacting specifications, these ready-to-ship steel gates are classic styles which offer security at a great price. In addition, our Modular Style Single gates are shipped in 2 pieces with a Double Gate Bracket to attach the halves, saving on freight cost!!

Why pay more for a custom gate?! These gates are specifically designed to accept our exclusive line of bolt-on ornamental scroll work. To complete the look of your entry way, matching gate posts are available with optional top mounting collar for adding lights.

Need a sliding gate? These standard swing gates are easily converted to a slide gate configuration by installing our optional bolt–on slide gate kit.

Add your own personal touch with these design elements, options and accessories to create the perfect semi-custom gate for your property. No other steel gate manufacturer offers this unique combination of design versatility and value pricing!

We've made it easy to select, configure and purchase your complete gate system!

• Select Your Gate
• Select Your Post & Hinge Kit
• Select Post End Caps
• Add Optional Ornamental Elements
• Add Optional Slide Gate Hardware Kit

Our gates are constructed with automation in mind and can be used in both swing and slide gate applications. We carry a wide selection of gate automation equipment and would be happy to help you select the right gate operator for your needs, just give us a call!

IMPORTANT NOTICE / DISCLAIMER:

— There may be minor imperfections in the powder-coat finish. These will not affect the durability of the gate and if present, are not significantly noticeable.
— Before installing posts in concrete, MEASURE the gate to ensure it is square. Measure from corner to corner, then each end from top to bottom. Measurements should not vary more than 1/4" – 1/2".
— Measure All Gates and Posts Prior to Installation!
— Shipping includes transporting the gate from our warehouse to the delivery address. It does NOT include lift gate service or unloading. Please be prepared to unload the gate using either a forklift with a boom or 3-4 people.
— Gates, as shipped, are designed for use as a swing gate. All gates can be converted for use as slide gates by adding wheels, track and other hardware. Call us for more information on requirements.

Construction:

Heavy 2mm Wall on Frame and Stakes
Hot Dip Galvanized Steel Tubing & Flat Bar
Black Powder-Coat Finish
Ships in 2 pieces to save on freight cost – there are mending plates located out of sight on the top and bottom of the frame, as well as bolt holes that are hidden in the center vertical of the gate frame

Optional Features & Accessories:

Bolt-On Scroll Work
Posts w/ Optional Light Collar
Coordinating Fencing & Pedestrian Gates
Bolt-On Swing Gate to Slide Gate Conversion Kit

Gate Manufacturing Specifications :
(Imperial Measurements are approximate - Included for your convenience)

Frame – Sides
40 x 30 x 2 mm Tube (1-1/2" x 1-1/4" x 5/64")
Frame – Top & Bottom
40 x 40 x 2 mm Tube (1-1/2" x 1-1/2" x 5/64")
2nd Rail – Top & Bottom
40 x 5 mm Flat Bar (1-1/2" x 13/64")
Stakes (Pickets)
20 x 20 x 2 mm (3/4" x 3/4" x 5/64")
